B407/SB407 Incoloy 800 Seamless Pipes, 800 Incoloy Seamless Pipes, Incoloy® Alloy 800 Seamless Pipes, Alloy 800 Seamless Pipes, Incoloy N08800 Seamless Pipe Supplier, Alloy 1.4876 Seamless Pipes Exporter in Mumbai India.
Greenline Pipe and Fitting is among the finest dealer of Incoloy 800 Pipe. We also supply variant custom designs related to the pipe’s sizes, dimensions, wall thickness, shapes, lengths, forms, finishes, etc. customized as per the needs of our customers. It is the finest material with great attributes such as good elasticity, weldability, and formability. It is easily machined and fabricated and hence very handy in use. Also, it is good to go with both hot as well as cold working.
Table of Content
Besides,Incoloy Alloy 800 Pipe is manufactured with the consideration of universally applied & accepted standards of ASTM B / ASME SB 358 & 407. Plus, one can order any type of pipes from a variant range of types like seamless pipes, welded pipes, fabricated pipes, hydraulic pipe, ESAW pipes, ERW and more. Also, it is availed in many differing formations such as square, round, polished, decorative, thick & thin wall pipes, and custom made pipes.
They are denser enough to absorb the elevated heat as well as the stresses. And, it has the melting point of 1385 degrees Celsius (or 2525 degrees Fahrenheit). The combination of tensile and yield strengths is also very well appreciated by most of the manufactures. It even provides the elongation of 30 % minimum. Moreover, it as a good structure chemically which is filled with the contents of nickel (major contributor in the alloy), carbon, manganese, silicon, chromium, iron, aluminium, titanium, copper, and sulfur.
They are highly applied in the fields of making chemical processing vessels & piping heat exchangers, paper & pulp industries for Pulp mill digesting pipe fittings, bleach washers, chip pre-steaming vessels, Food processing plants, Oil fields & gashouse piping systems, Flue gas desulfurization power plants, etc. Also, Alloy 800 Pipe is often seen in the nuclear and thermal power generating plants, petrochemicals, fuel gas processing, specialty chemicals, pharmaceuticals, and much more. They are also obliged to pass some eminent testing for quality assurance. These tests are inclusive of Intergranular Corrosion (IGC) tests, flaring test, flattening tests, tensile of area, micro & macro tests, PMI testing, pitting resistance test, hardness tests, Spectro analysis, etc.
Specifications : ASTM B407, B514 / ASME SB407, SB514
Standard : ASTM, ASME and API
Dimension Standard : ANSI B36.19M, ANSI B36.10
Outside Diameter : 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Thickness : 0.3mm – 50 mm.
Size : 15"NB – 150"NB
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps

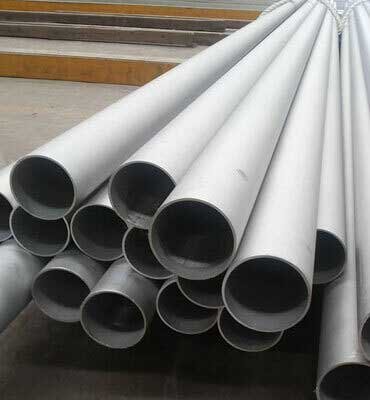

.jpg "Inconel 600 Seamless Pipes")

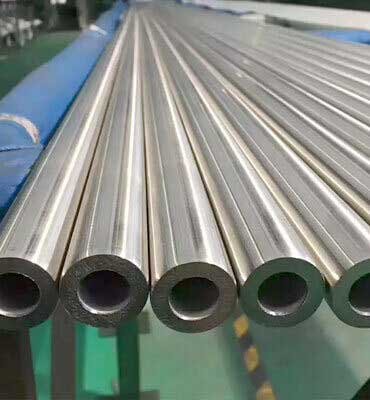

.jpg "Inconel 600 Welded Pipes")

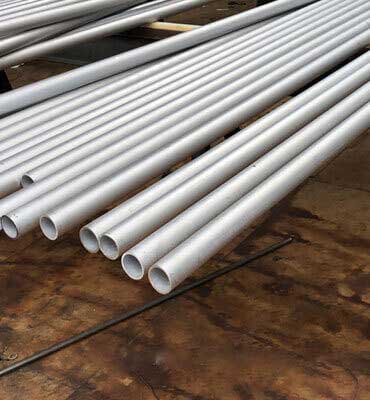

.jpg "Inconel 600 ERW Pipes")
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
