B444/SB444 Inconel 625 Seamless Pipes, 625 Inconel Seamless Pipes, Inconel® Alloy 625 Seamless Pipes, Alloy 625 Seamless Pipes, Inconel N06625 Seamless Pipe Supplier, Alloy 2.4856 Seamless Pipes Exporter in Mumbai India.
Greenline Pipe and Fitting is a well-reputed corporation for the trading of a variety of pipes. We also indulged in supply high-quality Inconel 625 Pipe. And, they are well-suited for any sort of custom designs. Whether the modification is to be done with their sizes, dimensions, thickness, surface finishes, types, forms, etc. it is good to go with every type of customization easily. It has good forming and performing skills.
Table of Content
It is well-appreciated for its high corrosion resisting attributes to any severe environments. But especially it is well-admired for its resistance to pitting and crevice corrosion damages. Then these pipes are also available in many different types such as seamless, ERW, welded, LSAW, and fabricated. Each type has different aspects and functions to fulfill. They are generally availed in a variety of forms such as square, round, hydraulic, etc. Moreover, could be accessible in lengths as single random, double random & custom length. The same way it has a range of particular ends that is inclusive of the plain end, beveled end, and tread.
The Inconel welded pipes are mostly preferred for the marine water applications and highly resistant to many organic as well as saltwater damages. On the other side, the ERW pipes are the nickel-based alloy that exhibits fascinating properties of high strength properties and tolerance to raised temperatures. The strength shown by Inconel Alloy 625 Pipe is the result of a combination of molybdenum and columbium contents in the chemical mix. Besides this, they are also having traces of carbon, manganese, silicon, iron, silicon, chromium, aluminium, titanium, and nickel. For more than half it is covered with the nickel contents. And, hence it is well known as the nickel alloy.
These pipes can easily resist corrosion due to oxidizing and aqueous nature. Alloy 625 Pipe is a good example of properties like high strength, excellent fabricability, and outstanding corrosion resistance. They have good elongation and a minimum range of 42.5%. Plus, it has outstanding tensile as well as yield strengths. They are prepared keeping in mind some internationally governed standards such as ASTM B/ ASME SB 444, 829, and 517. Along with These pipes we submit some very important documents namely third party inspection reports, 100% raw material & radiography test certificates.
Specifications : ASTM B444, B705 / ASME SB444, SB705
Standard : ASTM, ASME and API
Dimension Standard : ANSI B36.19M, ANSI B36.10
Outside Diameter : 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Thickness : 0.3mm – 50 mm.
Size : 15"NB – 150"NB
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps

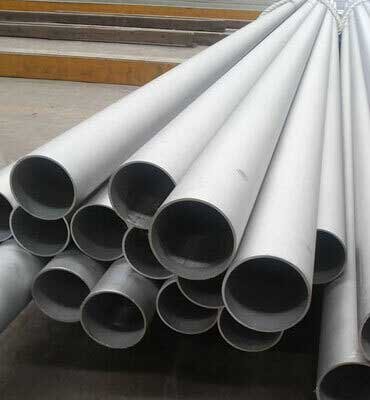

.jpg "Inconel 600 Seamless Pipes")

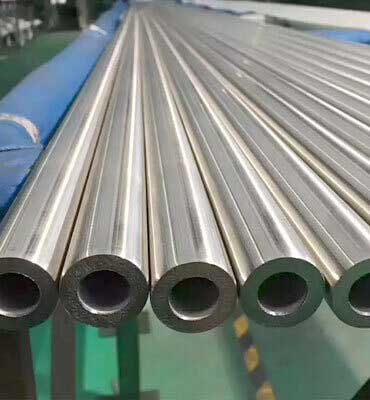

.jpg "Inconel 600 Welded Pipes")

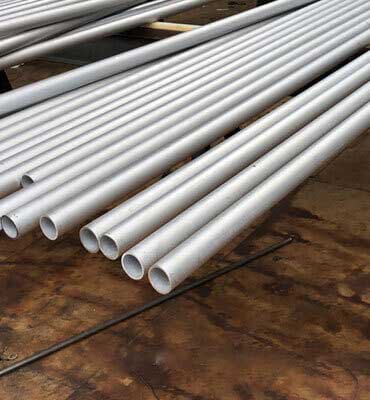

.jpg "Inconel 600 ERW Pipes")
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 705 | 42.5 % |
